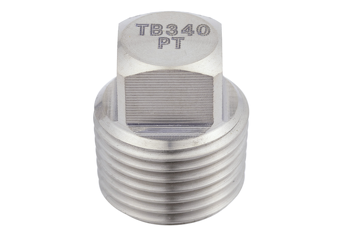

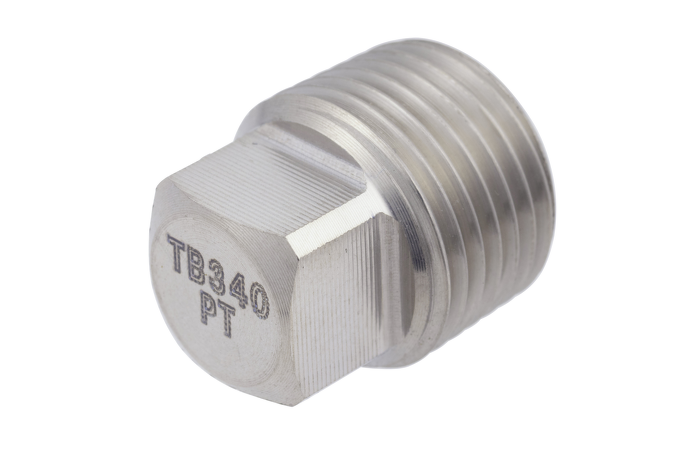

Special material, square plug (PT), high pressure type
Izutsu's square plugs can accommodate requests for the fabrication of any material. We can respond to a wide variety of customer requests with our abundant experience in manufacturing titanium, 329J4L, 304L, 317L, Alloy C276 (Hastelloy), SCM435, SCM435H, 403, aluminum, and other materials. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalentl |
|---|---|
| material properties | TB340 (Titanium) |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8 | S4P-006 | 7 | 15 |
| PT 1/4 | S4P-008 | 9 | 19 |
| PT 3/8 | S4P-010 | 12 | 21 |
| PT 1/2 | S4P-015 | 14 | 25 |
| PT 3/4 | S4P-020 | 17 | 28 |
| PT １ | S4P-025 | 19 | 32 |
| PT １1/4 | S4P-032 | 23 | 35 |
| PT １1/2 | S4P-040 | 26 | 36 |
| PT ２ | S4P-050 | 32 | 41 |
We can also manufacture products in sizes and materials not listed, such as Titanium 329J4L 304L Alloy C276 SCM435 SCM435H 403, etc. Please feel free to contact us for more information.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
