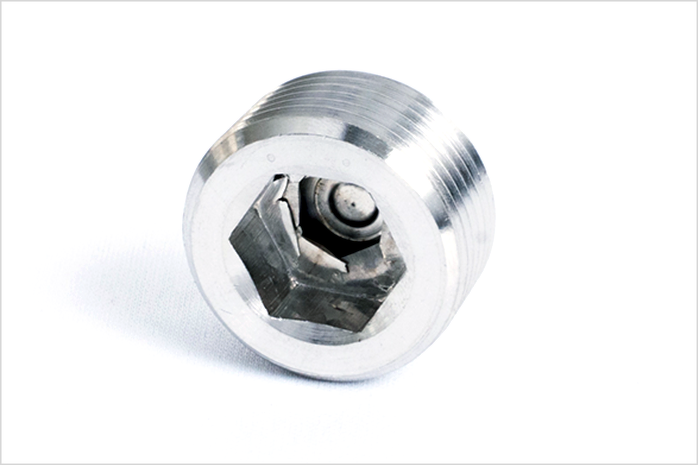

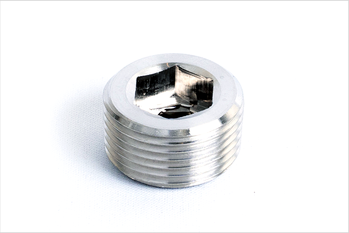

Titanium Sinking Plug (PT) High-Pressure Type
High-pressure titanium countersunk plugs with PT threads.
Featuring the excellent corrosion resistance and lightweight properties characteristic of titanium, these plugs are suitable for piping systems handling chemicals, seawater, and specialty fluids.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | TB340 Titanium |
Product Details
(Unit: mm)
| Nominal size | hexagon socket head | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8 | SSP-006 | 5 | 7 |
| PT 1/4 | SSP-008 | 6 | 9 |
| PT 3/8 | SSP-010 | 8 | 10 |
| PT 1/2 | SSP-015 | 10 | 12 |
| PT 3/4 | SSP-020 | 14 | 14 |
| PT １ | SSP-025 | 17 | 16.5 |
We can also manufacture products in sizes and materials not listed, such as Titanium 329J4L 304L Alloy C276 SCM435 SCM435H 403, etc. Please feel free to contact us for more information.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
