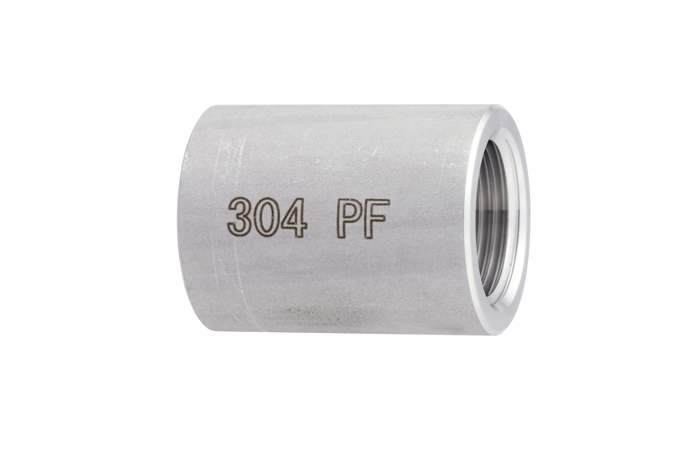

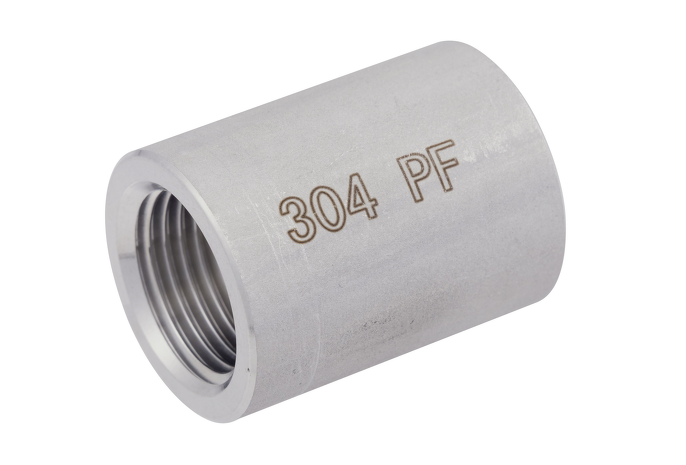

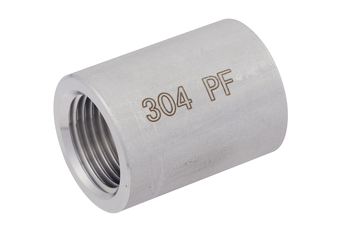

Thick Sockets (PF) Low Pressure Type
This is an original product of Izutsu Seisakusho.
SUS304 and SUS316L materials, which offer excellent corrosion resistance and make them suitable for a wide range of applications. With our extensive product lineup, we can meet a variety of customer needs. We ensure a stable supply of products through rigorous in-house quality control.
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS304,316,316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| PF 1/8 | SSPF-006 | 15 | 19 |
| PF 1/4 | SSPF-008 | 19 | 27 |
| PF 3/8 | SSPF-010 | 23 | 28 |
| PF 1/2 | SSPF-015 | 28 | 37 |
| PF 3/4 | SSPF-020 | 34.5（34） | 39 |
| PF １ | SSPF-025 | 41.5（42） | 46 |
| PF １1/4 | SSPF-032 | 51（50.8） | 51 |
| PF １1/2 | SSPF-040 | 58 | 51 |
| PF ２ | SSPF-050 | 70 | 60 |
| PF ２1/2 | SSPF-065 | 87 | 69 |
| PF ３ | SSPF-080 | 102 | 75 |
| PF ４ | SSPF-100 | 127 | 87 |
■ The dimensions in parentheses are for SUS316/316L.
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
