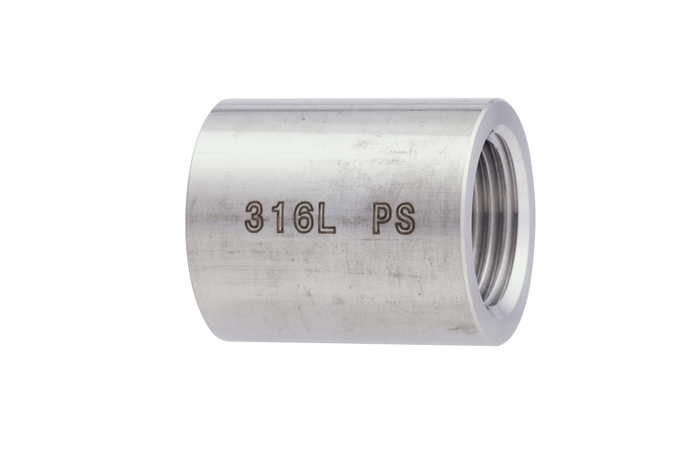

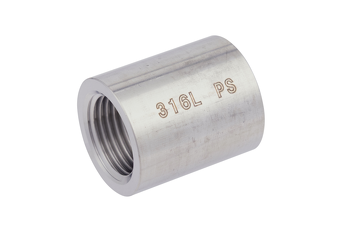

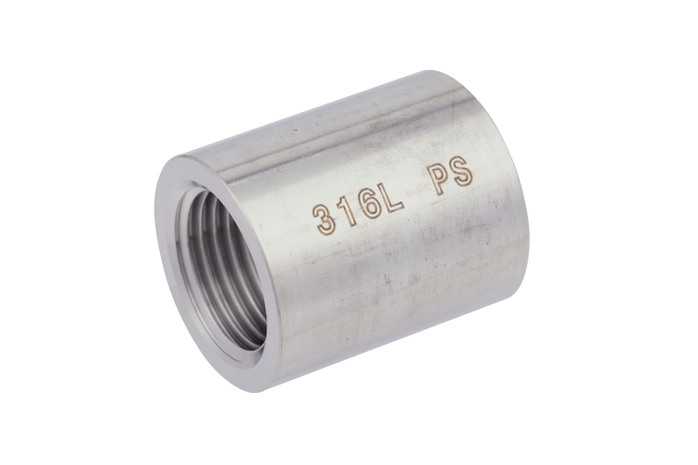

316L Socket PS
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
left-handed screw PS1/8 |
SSPSL-006 | 14 | 20 |
left-handed screw PS1/4 |
SSPSL-008 | 19 | 25 |
left-handed screw PS3/8 |
SSPSL-010 | 22 | 26 |
| left-handed screw PS1/2 | SSPSL-015 | 28 | 33 |
| left-handed screw PS3/4 | SSPSL-020 | 32 | 36 |
| left-handed screw PS１ | SSPSL-025 | 40 | 43 |
| left-handed screw PS１1/4 | SSPSL-032 | 48.6 | 48 |
| left-handed screw PS１1/2 | SSPSL-040 | 55 | 48 |
| left-handed screw PS２ | SSPSL-050 | 70 | 56 |
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
