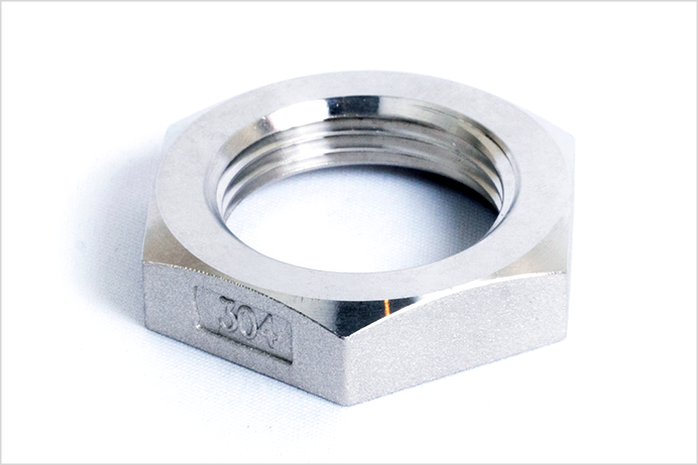

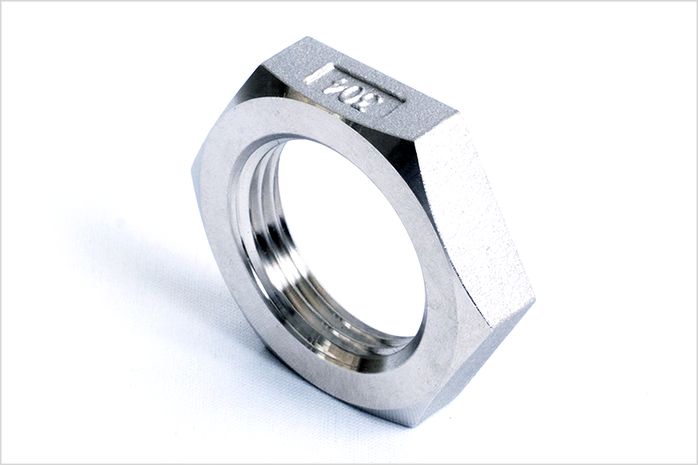

JIS Type Locknut (PF) Low Pressure Type
Izutsu's locknuts (PF) are made of SUS304 (SCS13) material, which is corrosion resistant and can be used in a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS304/SCS13A/316/316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PF 1/8 | SRN-006-JIS | 17 | 7 |
| PF 1/4 | SRN-008-JIS | 21 | 8 |
| PF 3/8 | SRN-010-JIS | 26 | 9 |
| PF 1/2 | SRN-015-JIS | 32 | 9 |
| PF 3/4 | SRN-020-JIS | 38 | 10 |
| PF １ | SRN-025-JIS | 46 | 11 |
| PF １1/4 | SRN-032-JIS | 54 | 12 |
| PF １1/2 | SRN-040 | 63 | 13 |
| PF ２ | SRN-050 | 77 | 15 |
| PF ２1/2 | SRN-065 | 100 | 17 |
| PF ３ | SRN-080 | 115 | 18 |
| PF ４ | SRN-100 | 145 | 22 |
Steel grade SUS304, SCS13A, and some 316 are also available. We can also manufacture products in sizes and materials not listed here, so please feel free to contact us.
