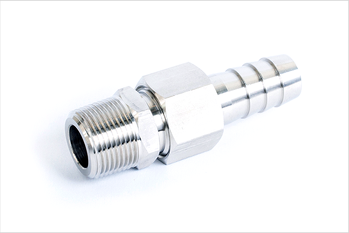

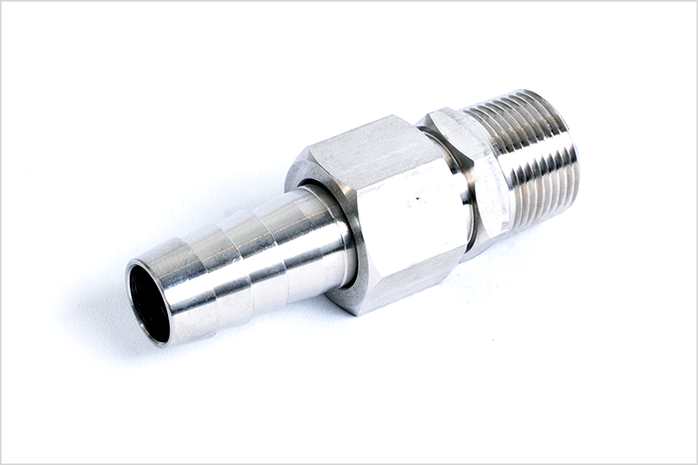

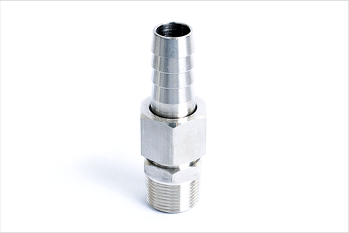

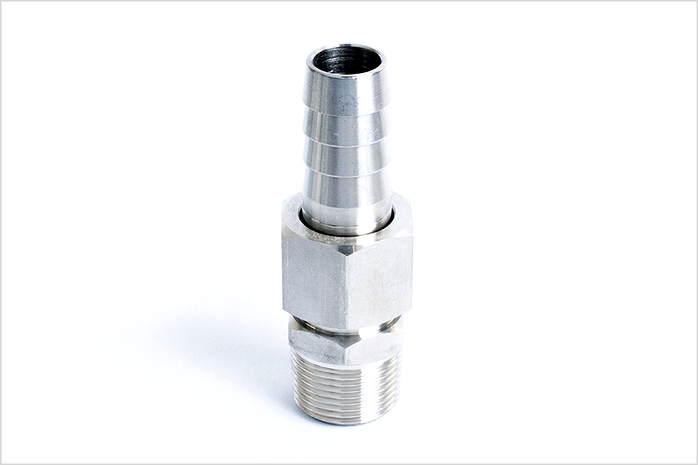

Hexagonal hose joint (male type)
This product can be disassembled into three parts—a cap nut, a hose, and a nipple—making it highly maintainable.
Product Specifications
| Working pressure | 1.0MPa（Normal temperature) |
|---|---|
| Operating temperature | Same as hose specifications |
| material properties | SUS304★SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | Hose diameter | length | Hoselength | |
|---|---|---|---|---|
| Dφ | L | L1 | ||
| R 1/4 | SHB-008-0080 | ★8 | 59 | 25 |
| R 1/4 | SHB-008-0090 | 9 | 59 | 25 |
| R 3/8 | SHB-010-0105 | ★10.5 | 64 | 25 |
| R 3/8 | SHB-010-0127 | 12.7 | 65 | 25 |
| R 1/2 | SHB-015-0127 | 12.7 | 78 | 30 |
| R 1/2 | SHB-015-0140 | ★14 | 78 | 30 |
| R 1/2 | SHB-015-0160 | 16 | 78 | 30 |
| R 3/4 | SHB-020-0190 | 19 | 90 | 38.5 |
| R 3/4 | SHB-020-0200 | 20 | 90 | 38.5 |
| R 3/4 | SHB-020-0205 | 20.5 | 90 | 38.5 |
| R １ | SHB-025-0270 | 27 | 109 | 50 |
| R １1/4 | SHB-032-0340 | 34 | 122 | 60 |
| R １1/2 | SHB-040-0405 | 40.5 | 124 | 60 |
| R ２ | SHB-050-0525 | 52.5 | 143 | 67 |
■Manufactured steel grade SUS304
SUS316L marked with ★ is also available.
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
