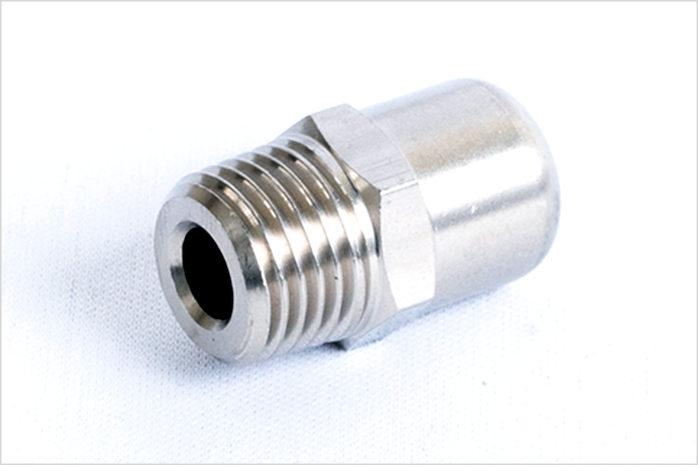

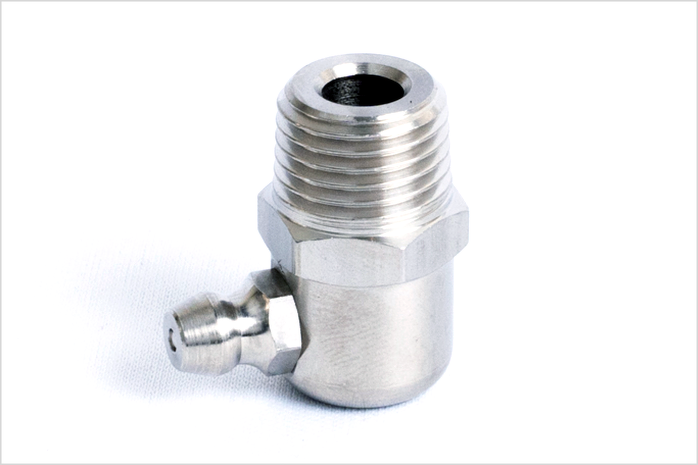

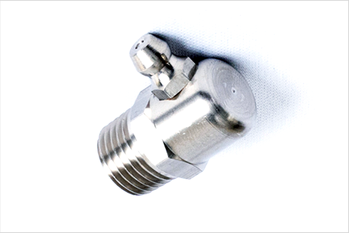

Grease nipple C type
Izutsu's grease nipple type C is made of SUS303 material.
Product Specifications
| material properties | SUS303 |
|---|
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8 | SGC-0006 | 10 | 21 |
| PT 1/4 | SGC-0008 | 14 | 24.5 |
| PT 3/8 | SGC-0010 | 17 | 27 |
| M6×P１ | SGC-6100 | 8 | 18 |
| M6×P0.75 | SGC-6075 | 8 | 18 |
| 1/4×28UNF | SGC-0828 | 8 | 18 |
■Grade of steel SUS303
