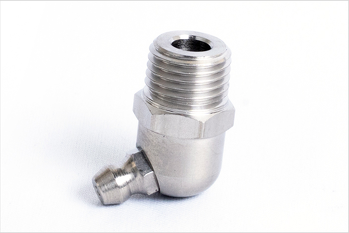

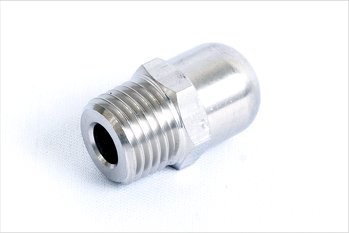

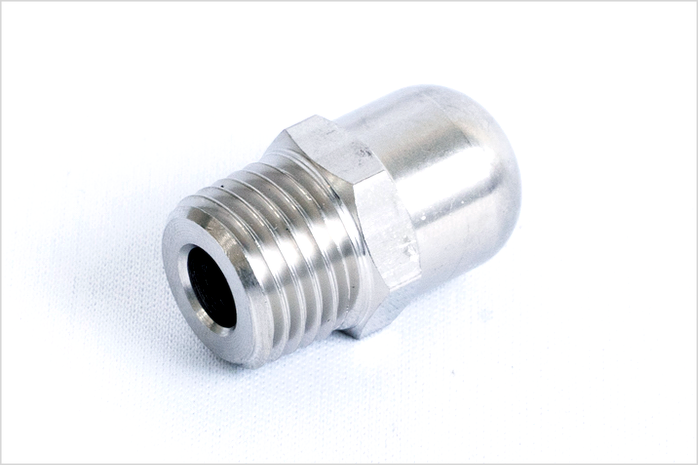

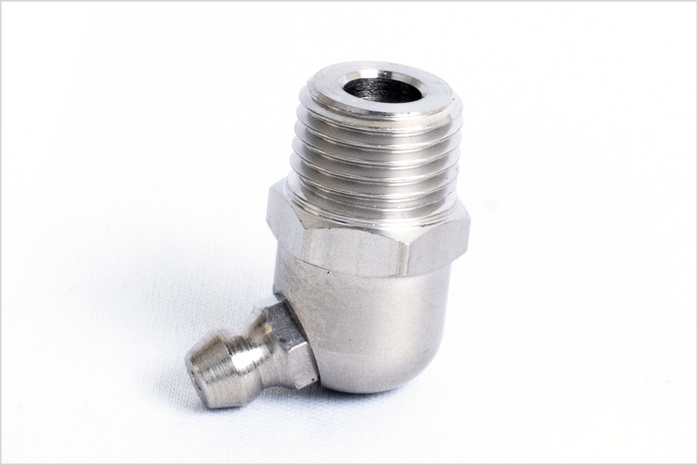

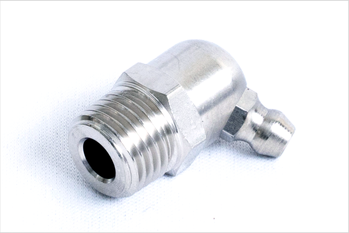

Grease nipple B type
Izutsu's grease nipple type B is made of SUS303 material.
Product Specifications
| material properties | SUS304 |
|---|
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| R1/8 | SGB-0006 | 10 | 21 |
| R1/4 | SGB-0008 | 14 | 24.5 |
| R3/8 | SGB-0010 | 17 | 27 |
| M6×P1 | SGB-6100 | 8 | 18 |
| M6×P0.75 | SGB-6075 | 8 | 18 |
| 1/4×28UNF | SGB-0828 | 8 | 18 |
■Grade of steel SUS303
