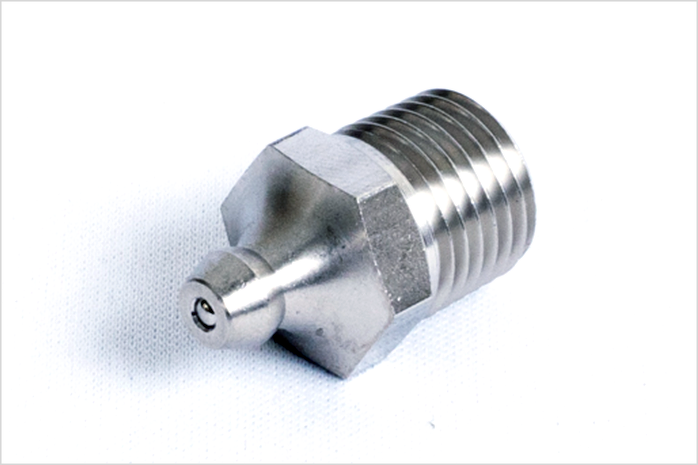

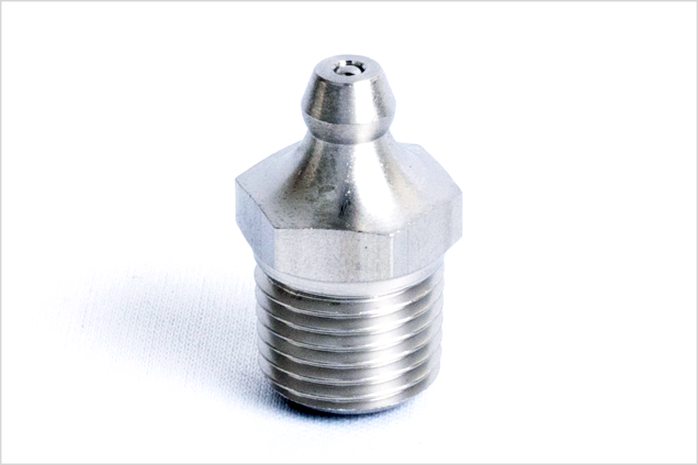

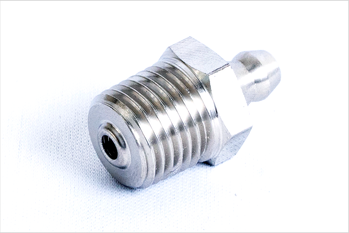

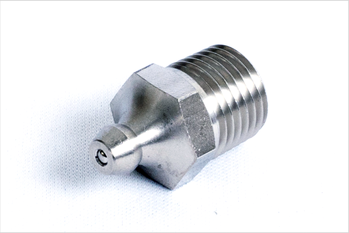

Grease nipple type A
Izutsu's grease nipple type A is made of SUS303 material.
Product Specifications
| material properties | SUS303 |
|---|
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| R1/8 | SGA-0006 | 10 | 20 |
| R1/4 | SGA-0008 | 14 | 25 |
| R3/8 | SGA-0010 | 17 | 25 |
| M6×P1 | SGA-6100 | 7 | 13.5 |
| M6×P0.75 | SGA-6075 | 7 | 13.5 |
| 1/4×28UNF | SGA-0828 | 7 | 13.5 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
