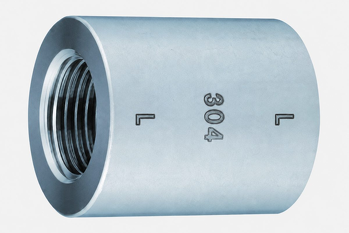

Adapter Socket (FC) Left-Hand Thread x Left-Hand Thread
This is a full-coupling adapter socket designed for connecting left-hand threaded fittings.
Because left-hand threads are tightened in the opposite direction from standard right-hand threads, this adapter is ideal for piping systems that require protection against reverse rotation or accidental misconnection.
It can be used in a wide range of applications, including various equipment, specialized piping, and jigs.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| Left PT1/8×Left PT1/8 | SSLL-0606 | 18 | 28 |
| Left PT1/4×Left PT1/4 | SSLL-0808 | 22 | 28 |
| Left PT3/8×Left PT3/8 | SSLL-1010 | 25 | 33 |
| Left PT1/2×Left PT1/2 | SSLL-1515 | 32 | 37 |
| Left PT3/4×Left PT3/4 | SSLL-2020 | 38 | 42 |
| Left PT1”×Left PT1” | SSLL-2525 | 46 | 45 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
