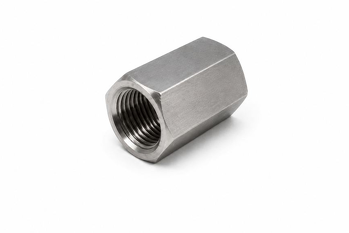

Hex Socket (G Thread) O-Ring Port Type
This is an original product from Izutsu Seisakusho.
It is a hex socket designed for O-ring ports with G-thread specifications, suitable for piping equipment and hydraulic and pneumatic lines.
The sealing structure, which utilizes an O-ring contact surface, ensures stable air and fluid tightness.
The hexagonal shape provides a secure grip for tools, allowing for reliable tightening even in tight spaces.
Translated with DeepL.com (free version)
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | Flat diameter | length | |
|---|---|---|---|
| HEX | L | ||
| G 1/4 | SSGG-0808 | 22 | 34 |
| G 3/8 | SSGG-1010 | 24 | 40 |
| G 1/2 | SSGG-1515 | 32 | 45 |
| G 3/4 | SSGG-2020 | 36 | 50 |
| G 1” | SSGG-2525 | 46 | 56 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
