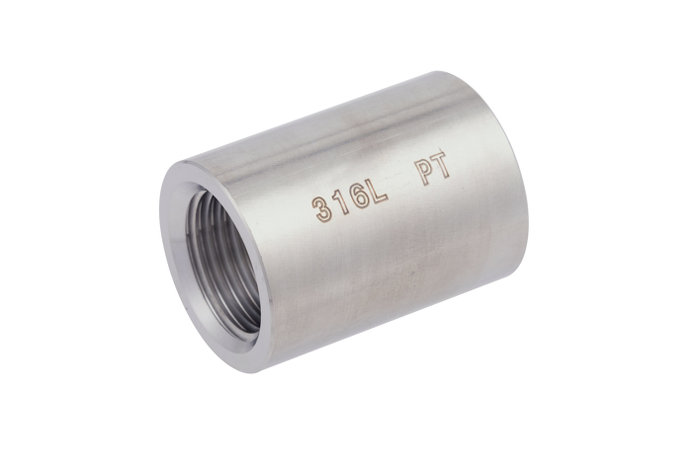

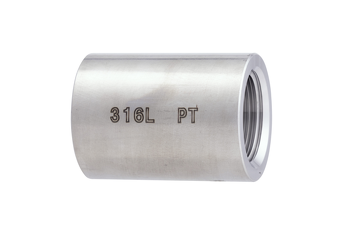

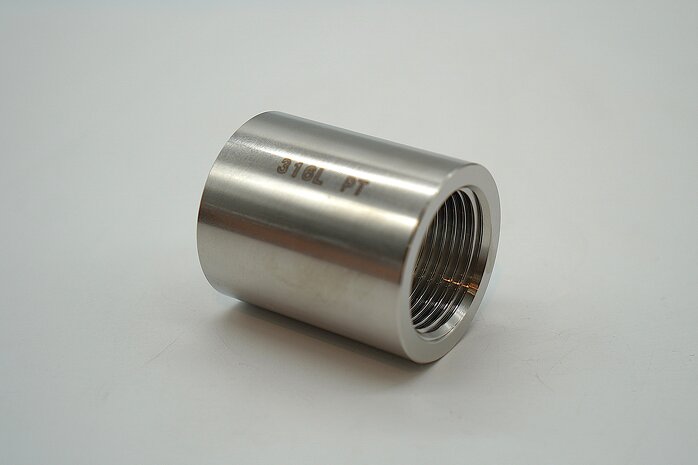

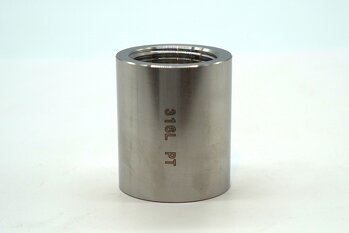

Socket PT 316L
Product Specifications
| material properties | SUS316L |
|---|---|
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| PT 1/8 | PTS-006-316L | 15 | 23 |
| PT 1/4 | PTS-008-316L | 19 | 29 |
| PT 3/8 | PTS-010-316L | 22 | 30 |
| PT 1/2 | PTS-015-316L | 28 | 38 |
| PT 3/4 | PTS-020-316L | 34 | 40 |
| PT 1” | PTS-025-316L | 40 | 45 |
| PT 1-1/4 | PTS-032-316L | 49 | 51 |
| PT 1-1/2 | PTS-040-316L | 56 | 54 |
| PT 2” | PTS-050-316L | 70 | 64 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
