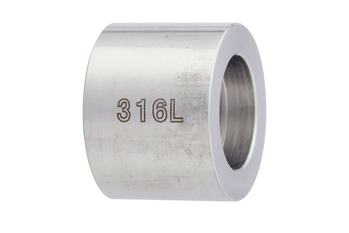

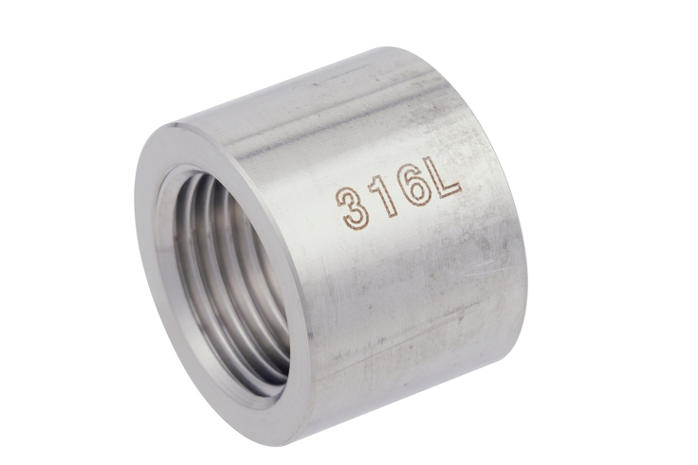

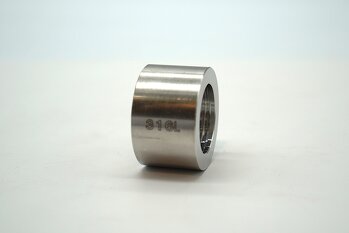

Half-Taper Socket PT 316/316L
This is a half-tapered socket with a PT thread.
Made from SUS316/316L, which offers excellent corrosion resistance, it is suitable for use in corrosive environments and chemical piping systems.
It can be used in a wide range of applications, including various piping systems, hydraulic and pneumatic systems, and fluid lines.
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS316・316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| PT 1/8 | HPTS-006-316/316L | 15 | 15 |
| PT 1/4 | HPTS-008-316/316L | 19 | 18 |
| PT 3/8 | HPTS-010-316/316L | 22 | 18 |
| PT 1/2 | HPTS-015-316/316L | 28 | 21 |
| PT 3/4 | HPTS-020-316/316L | 34 | 21 |
| PT 1” | HPTS-025-316/316L | 40 | 25 |
| PT 1-1/4 | HPTS-032-316/316L | 48.6 | 27 |
| PT 1-1/2 | HPTS-040-316/316L | 56 | 27 |
| PT 2” | HPTS-050-316/316L | 70 | 32 |
■Steel Grades: SUS316, 316L
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
