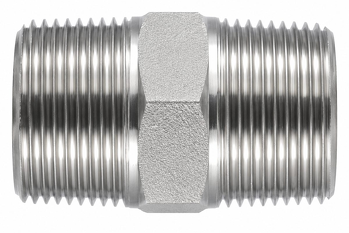

316L Hex Nipple, Low-Pressure Type
A low-pressure hex nipple made of SUS316L, designed for connecting PT threads.
The hexagonal shape makes it easy to tighten with tools.
Made of SUS316L, which offers excellent corrosion resistance.
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8×PT 1/8 | HXNI-0606 | 12 | 26 |
| PT 1/4×PT 1/4 | HXNI-0808 | 14 | 34 |
| PT 3/8×PT 3/8 | HXNI-1010 | 17 | 37 |
| PT 1/2×PT 1/2 | HXNI-1515 | 22 | 46 |
| PT 3/4×PT 3/4 | HXNI-2020 | 27 | 48 |
| PT １×PT １ | HXNI-2525 | 35 | 55 |
| PT １1/4×PT １1/4 | HXNI-3232 | 46 | 56 |
| PT １1/2×PT １1/2 | HXNI-4040 | 50 | 60 |
| PT ２×PT ２ | HXNI-5050 | 63 | 66 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
