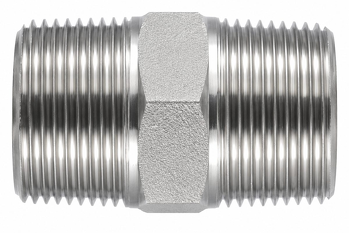

Hex Nipple Adapter, PT (Left-Hand Thread × Left-Hand Thread), High-Pressure Type
High-pressure-rated hex nipple adapter with PT left-hand thread × PT left-hand thread configuration.
Compatible with left-hand (reverse) thread connections.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| Left-hand thread PT 1/8 | SNLL-0606 | 12 | 26 |
| Left-hand thread PT 1/4 | SNLL-0808 | 14 | 34 |
| Left-hand thread PT 3/8 | SNLL-1010 | 17 | 37 |
| Left-hand thread PT 1/2 | SNLL-1515 | 22 | 46 |
| Left-hand thread PT 3/4 | SNLL-2020 | 27 | 48 |
| Left-hand thread PT 1” | SNLL-2525 | 35 | 55 |
■Steel Grades: SUS304
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
