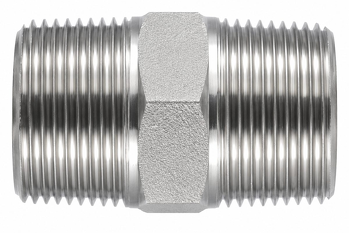

Hex Nipple Adapter, PT (Left-Hand Thread × Right-Hand Thread), High-Pressure Type
This is a high-pressure-rated hex nipple adapter designed for PT right-hand thread to PT left-hand thread connections.
It accommodates connections with opposite thread directions (right-hand and left-hand) and is suitable for special piping applications and preventing incorrect connections.
The hexagonal shape provides excellent tool engagement, enabling reliable tightening.
Also known as: Right-hand thread (standard thread) / Left-hand thread (reverse thread)
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| Left-hand thread × Right-hand thread, PT 1/8 | SNLR-0606 | 12 | 26 |
| Left-hand thread × Right-hand thread, PT 1/4 | SNLR0808 | 14 | 34 |
| Left-hand thread × Right-hand thread, PT 3/8 | SNLR-1010 | 17 | 37 |
| Left-hand thread × Right-hand thread, PT 1/2 | SNLR-1515 | 22 | 46 |
| Left-hand thread × Right-hand thread, PT 3/4 | SNLR-2020 | 27 | 48 |
| Left-hand thread × Right-hand thread, PT 1” | SNLR-2525 | 35 | 55 |
■Steel Grades: SUS304
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
