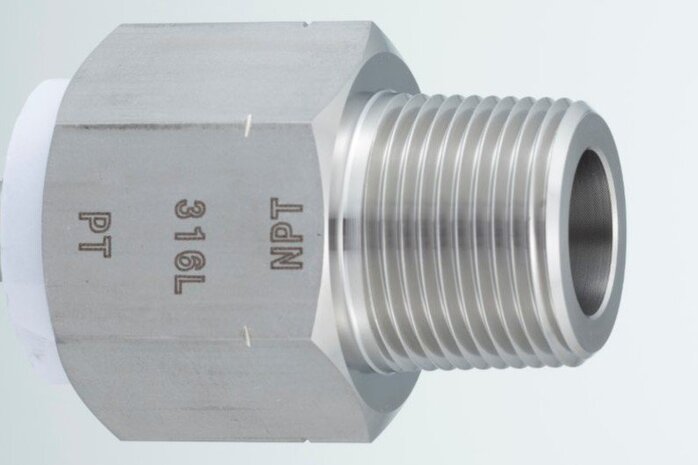

316L Female-male socket (PT x NPT)
These are high-pressure male and female sockets designed for connecting PT and NPT threads.
Made from SUS304/316L stainless steel, they offer excellent corrosion resistance and durability.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304/316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8×NPT 1/8 | SMPN-0606 | 17 | 28 |
| PT 1/4×NPT 1/4 | SMPN-0808 | 22 | 33 |
| PT 3/8×NPT 3/8 | SMPN-1010 | 24 | 36 |
| PT 1/2×NPT 1/2 | SMPN-1515 | 32 | 45 |
| PT 3/4×NPT 3/4 | SMPN-2020 | 36 | 50 |
| PT １×NPT １ | SMPN-2525 | 46 | 58 |
| PT １1/4×NPT １1/4 | SMPN-3232 | 55 | 67 |
| PT １1/2×NPT １1/2 | SMPN-4040 | 65 | 69 |
| PT ２×NPT ２ | SMPN-5050 | 75 | 79 |
| PT 2 1/2×NPT 2 1/2 | SMPN-6565 | 95(八角) | 81 |
| PT 3 ×NPT 3 | SMPN-8080 | 110(八角) | 85 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
