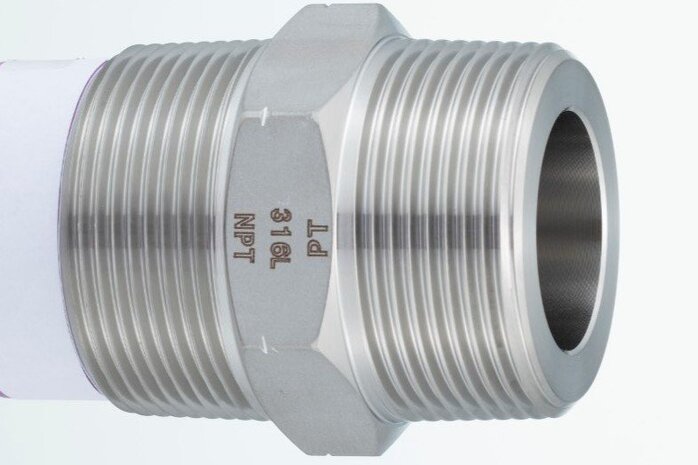

316L adapter Nipple (PT x NPT)
A high-pressure hexagonal adapter nipple designed for connecting PT and NPT threads.
Made from SUS304/316L stainless steel, it offers excellent corrosion resistance and durability.
The hexagonal shape provides excellent tool engagement, ensuring reliable tightening.
A connector for American and Japanese threads.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304/316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8×NPT 1/8 | SNPN-0606 | 12 | 26 |
| PT 1/4×NPT 1/4 | SNPN-0808 | 14 | 34 |
| PT 3/8×NPT 3/8 | SNPN-1010 | 17 | 37 |
| PT 1/2×NPT 1/2 | SNPN-1515 | 22 | 46 |
| PT 3/4×NPT 3/4 | SNPN-2020 | 27 | 48 |
| PT １×NPT １ | SNPN-2525 | 35 | 55 |
| PT １1/4×NPT １1/4 | SNPN-3232 | 46 | 56 |
| PT １1/2×NPT １1/2 | SNPN-4040 | 50 | 60 |
| PT ２×NPT ２ | SNPN-5050 | 63 | 66 |
| PT 2 1/2×NPT 2 1/2 | SNPN-6565 | 80 | 80 |
| PT 3 ×NPT 3 | SNPN-8080 | 95 | 88 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
