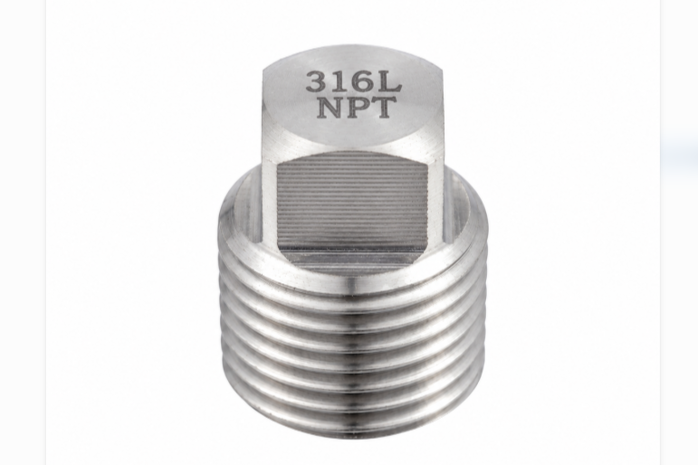

316L square plug (NPT)
Izutsu's square plugs (NPT) are made of SUS304, 316, and 316L materials, which provide excellent corrosion resistance and a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304/SUS316/SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| NPT 1/16 | S4PN-004 | 5 | 13 |
| NPT 1/8 | S4PN-006 | 7 | 15.5 |
| NPT 1/4 | S4PN-008 | 9.5 | 19 |
| NPT 3/8 | S4PN-010 | 11 | 22 |
| NPT 1/2 | S4PN-015 | 14.5 | 26 |
| NPT 3/4 | S4PN-020 | 16 | 29 |
| NPT １ | S4PN-025 | 20.5 | 33 |
| NPT １1/4 | S4PN-032 | 24 | 36 |
| NPT １1/2 | S4PN-040 | 28.5 | 38 |
| NPT ２ | S4PN-050 | 33.5 | 43 |
| NPT 2 1/2 | S4PN-065 | 38 | 49 |
| NPT 3 | S4PN-080 | 43 | 55 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
