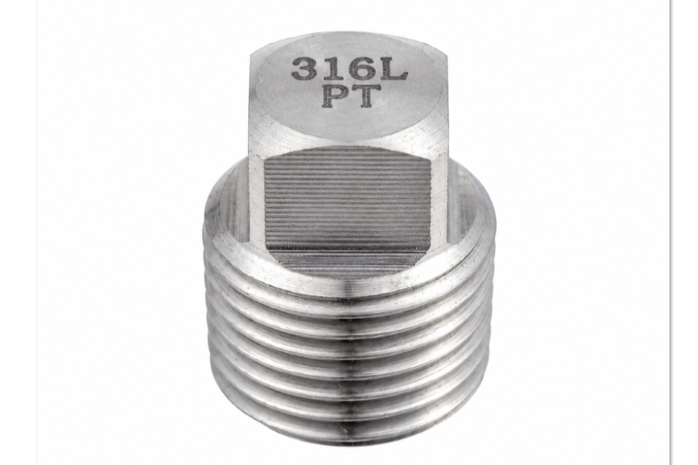

316L square plug (PT)
Izutsu's square plugs (PT) are made of SUS304, 316, and 316L materials, which provide excellent corrosion resistance and a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304/SUS316/SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/16 | S4P-004 | 5 | 13 |
| PT 1/8 | S4P-006 | 7 | 15 |
| PT 1/4 | S4P-008 | 9 | 19 |
| PT 3/8 | S4P-010 | 12 | 21 |
| PT 1/2 | S4P-015 | 14 | 25 |
| PT 3/4 | S4P-020 | 17 | 28 |
| PT １ | S4P-025 | 19 | 32 |
| PT １1/4 | S4P-032 | 23 | 35 |
| PT １1/2 | S4P-040 | 26 | 36 |
| PT ２ | S4P-050 | 32 | 41 |
| PT ２1/2 | S4P-065 | 41 | 49 |
| PT ３ | S4P-080 | 46 | 53 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
