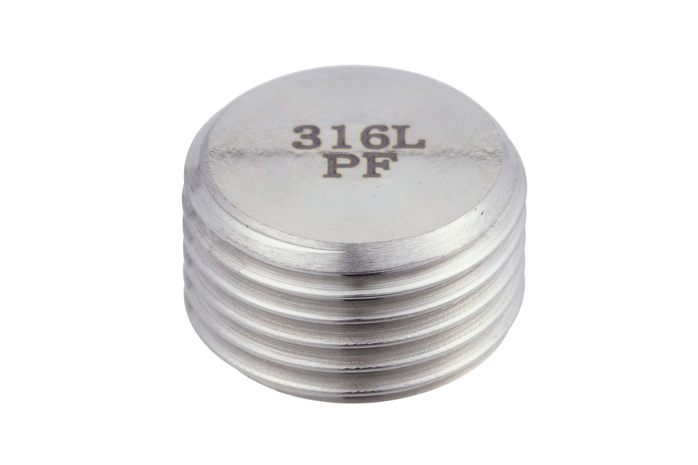

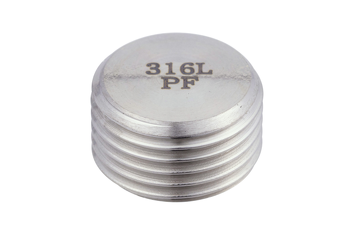

316L Sink Plug, PF
Izutsu's sunken plugs (PF) are made of SUS304, 316, and 316L materials, which provide excellent corrosion resistance and a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304/SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | hexagon socket head | length | |
|---|---|---|---|
| H | L | ||
| PF 1/16 | SSPPF-004 | 4 | 6 |
| PF1/8 | SSPPF-006 | 5 | 7 |
| PF1/4 | SSPPF-008 | 6 | 9 |
| PF3/8 | SSPPF-010 | 8 | 10 |
| PF 1/2 | SSPPF-015 | 10 | 12 |
| PF 3/4 | SSPPF-020 | 14 | 14 |
| PF １ | SSPPF-025 | 17 | 16.5 |
| PF １1/4 | SSPPF-032 | 22 | 19 |
| PF １1/2 | SSPPF-040 | 22 | 20 |
| PF ２ | SSPPF-050 | 27 | 22 |
| PF ２1/2 | SSPPF-065 | 36 | 30 |
| PF ３ | SSPPF-080 | 41 | 35 |
| PF ４ | SSPPF-100 | 50 | 40 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
