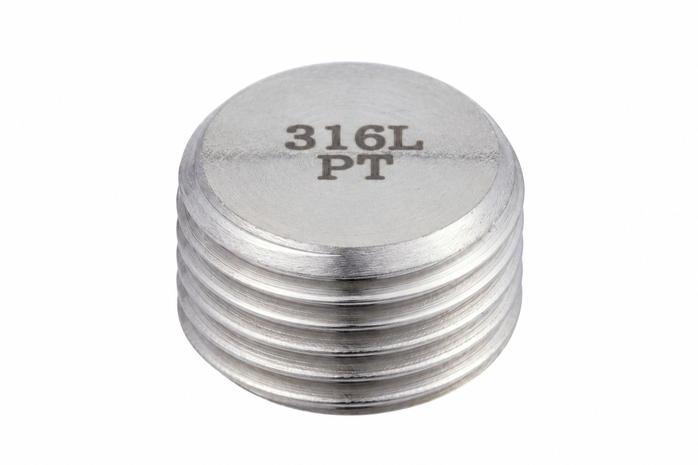

316L Floating plug, PT
Izutsu's floating plugs (PT) are made of XM7, SUS304, 316, and 316L materials, which provide excellent corrosion resistance and a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | XM-7/SUS304/SUS316/SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | hexagon socket head | length | |
|---|---|---|---|
| H | L | ||
| PT 1/16 | SUP-004 | 4 | 7 |
| PT 1/8 | SUP-006 | 5 | 8 |
| PT 1/4 | SUP-008 | 6 | 11 |
| PT 3/8 | SUP-010 | 8 | 12 |
| PT 1/2 | SUP-015 | 10 | 15 |
| PT 3/4 | SUP-020 | 14 | 17 |
| PT １ | SUP-025 | 17 | 19 |
| PT １1/4 | SUP-032 | 22 | 22 |
| PT １1/2 | SUP-040 | 22 | 22 |
| PT ２ | SUP-050 | 27 | 24 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
