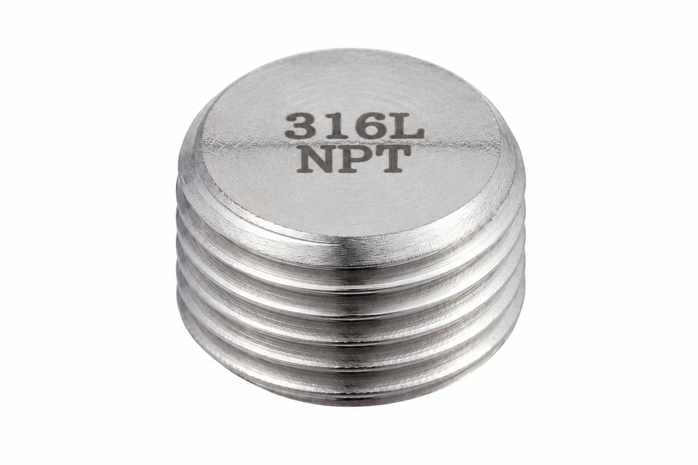

316L Sink Plug, NPT
Izutsu's sinking plugs (NPT ) are made of XM7, SUS304, 316, and 316L materials, which provide excellent corrosion resistance and a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | XM-7/SUS304/SUS316/SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | hexagon socket head | length | |
|---|---|---|---|
| H | L | ||
| NPT 1/8 | SPN-006 | 5（4.83） | 6.35 |
| NPT 1/4 | SPN-008 | 6（6.03） | 10.3 |
| NPT 3/8 | SPN-010 | 8（8.03） | 10.3 |
| NPT 1/2 | SPN-015 | 10（9.63） | 13.5 |
| NPT 3/4 | SPN-020 | 14 | 14 |
| NPT １ | SPN-025 | 17 | 16.5 |
| NPT １1/4 | SPN-032 | 22 | 19 |
| NPT １1/2 | SPN-040 | 22 | 20 |
| NPT ２ | SPN-050 | 27 | 22 |
| NPT 2 1/2 | SPN-065 | 36 | 30 |
| NPT 3 | SPN-080 | 41 | 35 |
| PT ３ | SSP-080 | 41 | 35 |
| PT ４ | SSP-100 | 50 | 40 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
