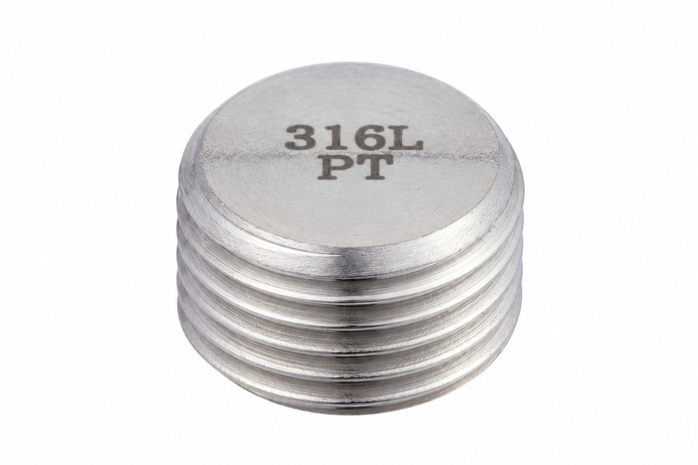

316L Sink Plug, PT
Izutsu's sunken plugs (PT) are made of XM7, SUS304, 316, and 316L materials, which provide excellent corrosion resistance and a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | XM-7/SUS304/SUS316/SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | hexagon socket head | length | |
|---|---|---|---|
| H | L | ||
| PT 1/16 | SSP-004 | 4 | 6 |
| PT 1/8 | SSP-006 | 5 | 7 |
| PT 1/4 | SSP-008 | 6 | 9 |
| PT 3/8 | SSP-010 | 8 | 10 |
| PT 1/2 | SSP-015 | 10 | 12 |
| PT 3/4 | SSP-020 | 14 | 14 |
| PT １ | SSP-025 | 17 | 16.5 |
| PT １1/4 | SSP-032 | 22 | 19 |
| PT １1/2 | SSP-040 | 22 | 20 |
| PT ２ | SSP-050 | 27 | 22 |
| PT ２1/2 | SSP-065 | 36 | 30 |
| PT ３ | SSP-080 | 41 | 35 |
| PT ４ | SSP-100 | 50 | 40 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
