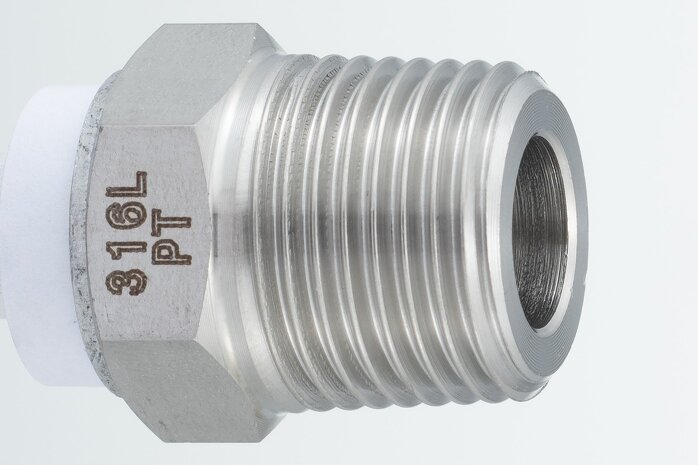

316L Bushing PT
Low-pressure bushing with PT threads.
Made of SUS316L, it offers excellent corrosion resistance and can be used in a wide range of applications, including hydraulic and pneumatic equipment, various types of industrial machinery, and chemical plants.
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT3/8×PT1/4 | SBPP-1008 | 17 | 22 |
| PT1/2×PT1/4 | SBPP-1508 | 22 | 25 |
| PT1/2×PT3/8 | SBPP-1510 | 22 | 25 |
| PT3/4×PT3/8 | SBPP-2010 | 27 | 28 |
| PT3/4×PT1/2 | SBPP-2015 | 27 | 28 |
| PT1”×PT1/2 | SBPP-2515 | 35 | 30 |
| PT1”×PT3/4 | SBPP-2520 | 35 | 30 |
| PT1-1/4×PT1” | SBPP-3225 | 46 | 34 |
| PT1-1/2×PT1-1/4 | SBPP-4032 | 50 | 37 |
| PT2”×PT1-1/2 | SBPP-5040 | 63 | 41 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
