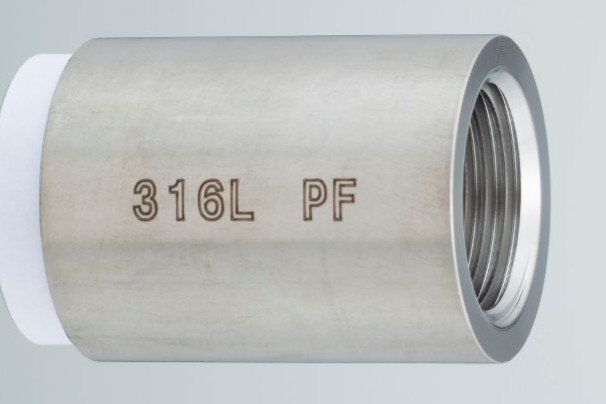

316L Socket PF

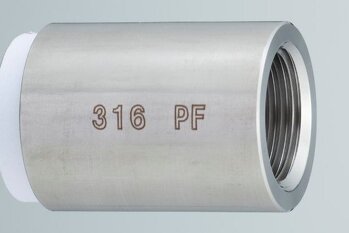

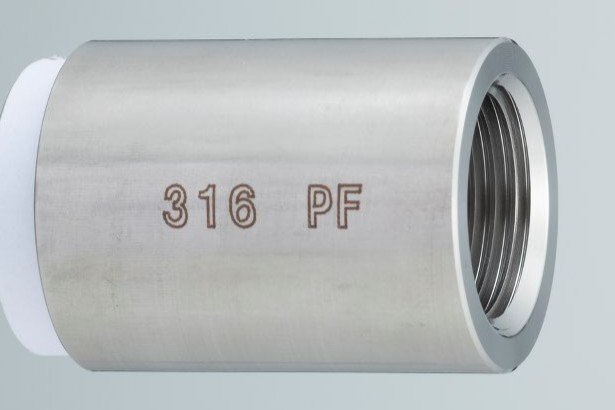

316L Stainless Steel PF Screw Socket
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS304/316/316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| PF 1/8 | SSPF-006 | 15 | 19 |
| PF 1/4 | SSPF-008 | 19 | 27 |
| PF 3/8 | SSPF-010 | 23 | 28 |
| PF 1/2 | SSPF-015 | 28 | 37 |
| PF 3/4 | SSPF-020 | 34.5（35） | 39 |
| PF １ | SSPF-025 | 41.5（42） | 46 |
| PF １1/4 | SSPF-032 | 50.8（51） | 51 |
| PF １1/2 | SSPF-040 | 58 | 51 |
| PF ２ | SSPF-050 | 70 | 60 |
| PF ２1/2 | SSPF-065 | 87 | 69 |
| PF ３ | SSPF-080 | 101.6（102） | 75 |
| PF ４ | SSPF-100 | 127 | 87 |
■ The dimensions in parentheses () are for parts made of SUS316 and SUS316L.
■Steel Grades: SUS304/316/316L
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
