316L Socket PS

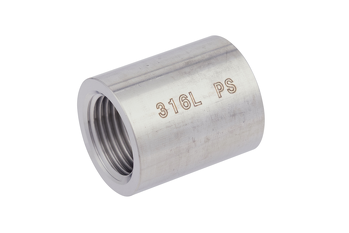

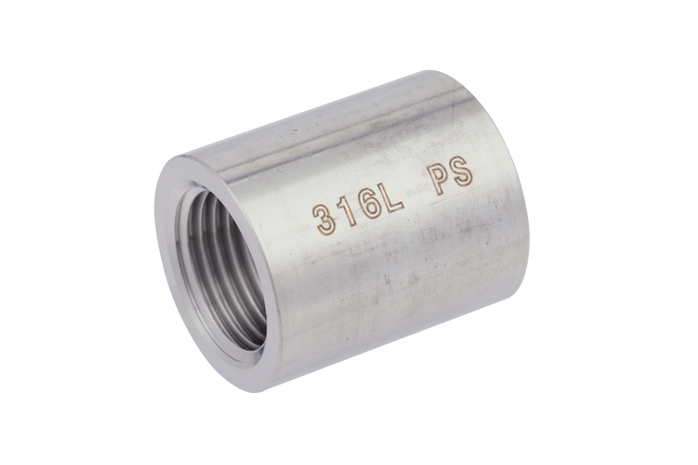

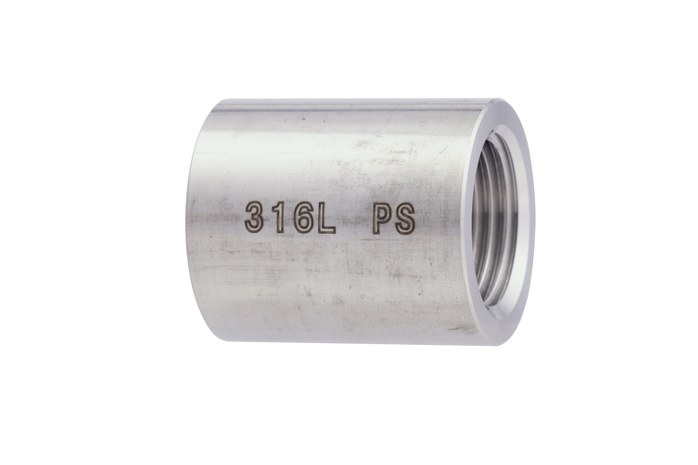

316L Stainless Steel PS Screw Socket
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| PS1/8 | SSPS-006 | 14 | 20 |
| PS1/4 | SSPS-008 | 19 | 25 |
| PS3/8 | SSPS-010 | 22 | 26 |
| PS1/2 | SSPS-015 | 28 | 33 |
| PS3/4 | SSPS-020 | 32 | 36 |
| PS１ | SSPS-025 | 40 | 43 |
| PS１1/4 | SSPS-032 | 48.6 | 51 |
| PS１1/2 | SSPS-040 | 55 | 48 |
| PS２ | SSPS-050 | 70 | 56 |
| PS 2 1/2 | SSPS-065 | 85 | 65 |
| PS 3 | SSPS-080 | 100 | 70 |
| PS 4 | SSPS-100 | 125 | 84 |
■Steel Grades: SUS 316L
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
