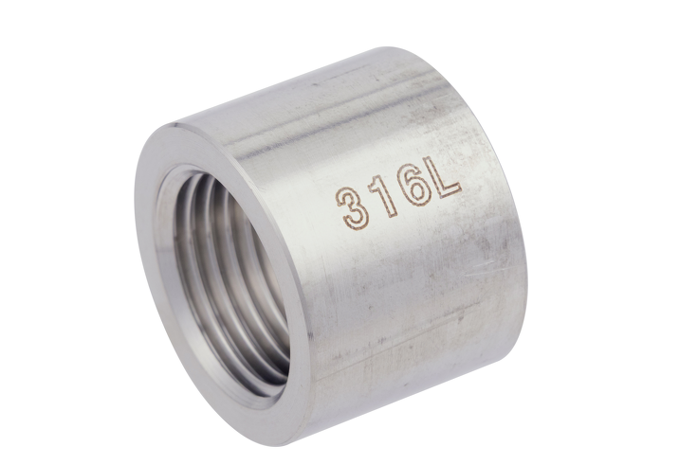

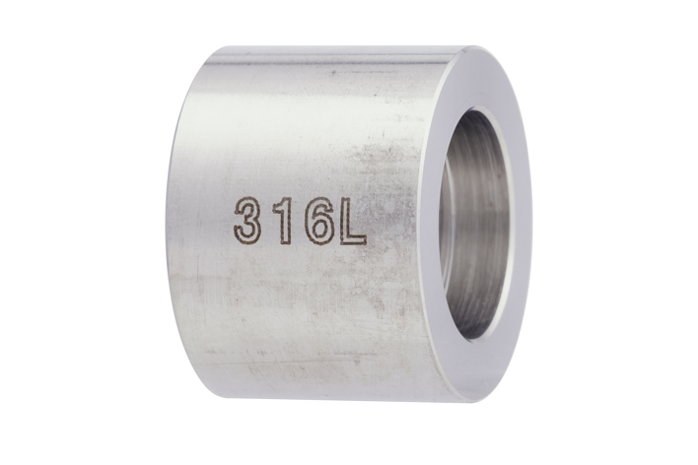

Half-Taper Socket PT 316/316L
316L Stainless Steel PT Screw, Half Socket
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS316・316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| PT 1/8 | HPTS-006-316/316L | 15 | 15 |
| PT 1/4 | HPTS-008-316/316L | 19 | 18 |
| PT 3/8 | HPTS-010-316/316L | 22 | 18 |
| PT 1/2 | HPTS-015-316/316L | 28 | 21 |
| PT 3/4 | HPTS-020-316/316L | 34 | 21 |
| PT 1” | HPTS-025-316/316L | 40 | 25 |
| PT 1-1/4 | HPTS-032-316/316L | 48.6 | 27 |
| PT 1-1/2 | HPTS-040-316/316L | 56 | 27 |
| PT 2” | HPTS-050-316/316L | 70 | 32 |
■Steel Grades: SUS316, 316L
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
