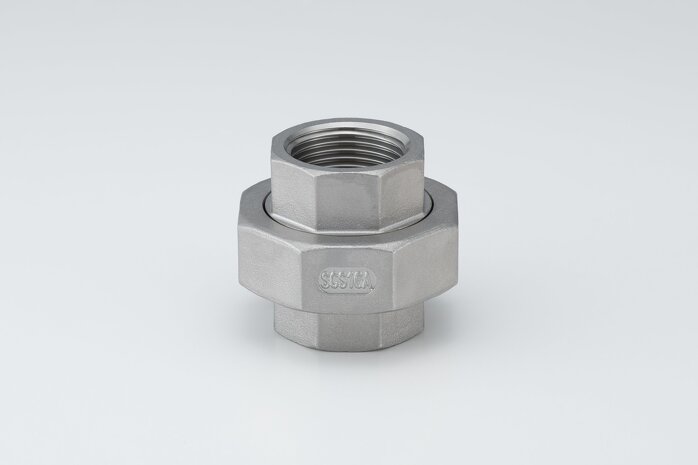

316L (SCS16A) Union PT
Made from a material equivalent to SUS316L, it offers excellent corrosion and chemical resistance, making it suitable for use in a wide range of fields, including water treatment facilities, chemical plants, food processing facilities, and semiconductor-related equipment.
Product Specifications
| Working pressure | 1.0MPa（Normal temperature) |
|---|---|
| material properties | SCS16A |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/4 | U-008-316L | 30 | 34 |
| PT 3/8 | U-010-316L | 35 | 38.5 |
| PT 1/2 | U-015-316L | 40 | 41.5 |
| PT 3/4 | U-020-316L | 47 | 48.5 |
| PT １ | U-025-316L | 57 | 54 |
