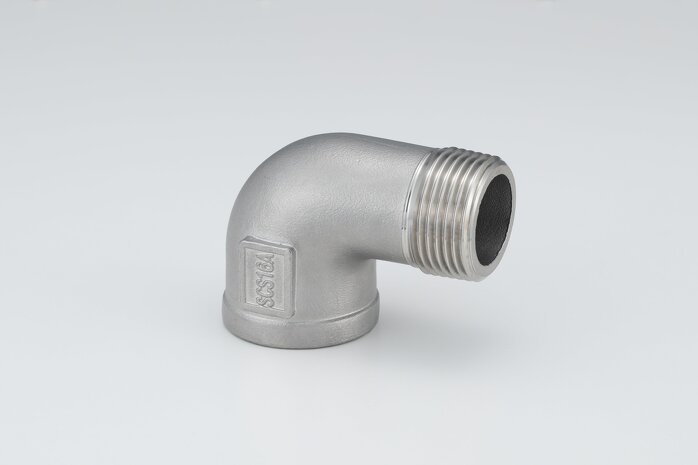

316L (SCS16A) street elbow PT
Made from a material equivalent to SUS316L, it offers excellent corrosion and chemical resistance, making it suitable for use in a wide range of fields, including water treatment facilities, chemical plants, food processing facilities, and semiconductor-related equipment.
Product Specifications
| Working pressure | 1.0MPa（Normal temperature) |
|---|---|
| material properties | SCS16A |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | Interface | ||
|---|---|---|---|
| A | B | ||
| PT 1/4 | STL-008-316L | 19 | 30 |
| PT 3/8 | STL-010-316L | 23 | 35 |
| PT 1/2 | STL-015-316L | 27 | 40 |
| PT 3/4 | STL-020-316L | 32 | 47 |
| PT １ | STL-025-316L | 38 | 54 |
